Understanding your vehicle’s cylinder head is essential for any car owner or aspiring mechanic. The cylinder head sits atop the engine block and plays a critical role in your engine’s operation by sealing the combustion chamber and housing vital components. This guide will explain the function, types, common issues, and maintenance needs of cylinder heads in simple terms.
Disclaimer: This article provides general information only. For specific vehicle concerns, always consult with a qualified automotive professional.
Throughout this guide, you may see Bilal and Omar discussing vehicle systems, maintenance procedures, and troubleshooting situations. They are fictional educational characters created by Remliks Solutions to help explain automotive and truck concepts in a practical and engaging way.
1. What Is a Cylinder Head?

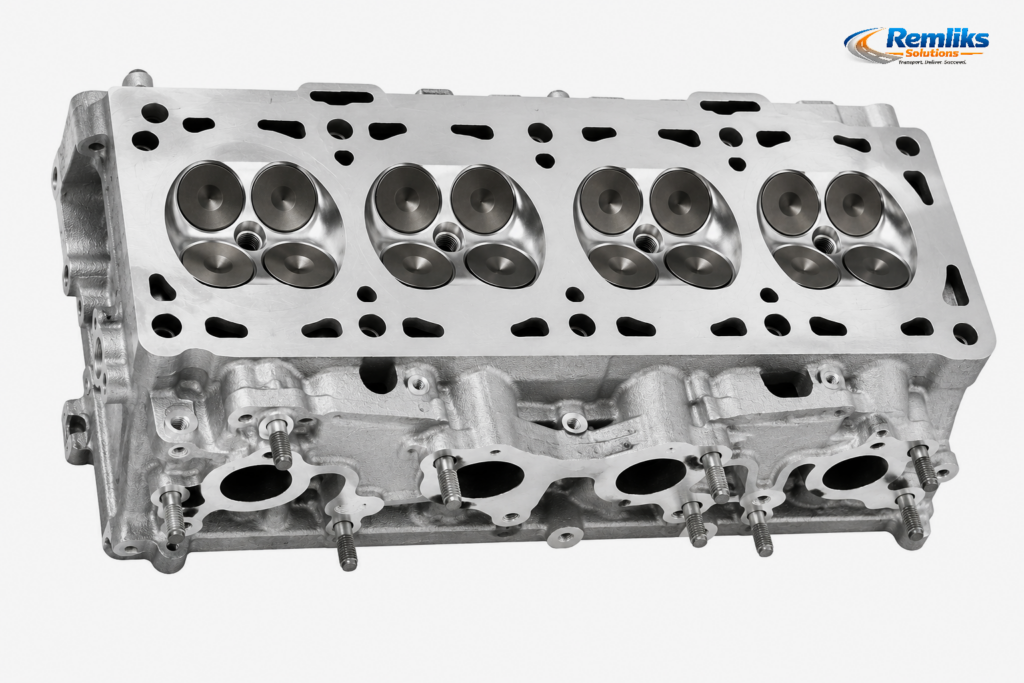

A cylinder head is a detachable metal plate that covers the top of the engine cylinders. It forms the upper part of the combustion chamber and contains several crucial components that allow your engine to function properly.
1.1 Basic Function
The cylinder head performs several important functions:
- Seals the top of the cylinders to contain the combustion process
- Houses the intake and exhaust valves
- Provides mounting points for spark plugs (gasoline engines) or fuel injectors (diesel engines)
- Contains passageways for coolant and oil
- Helps dissipate heat from the combustion process
1.2 Materials Used
Cylinder heads are typically made from one of two materials:
- Cast Iron
- Durable and resistant to wear
- Heavier than aluminum
- More resistant to cracking under high temperatures
- Often found in older vehicles and heavy-duty applications
- Aluminum
- Lighter weight, improving fuel efficiency
- Better heat dissipation
- More prone to warping and cracking under extreme conditions
- Common in modern vehicles
2. Cylinder Head Components
A cylinder head contains several integrated components that work together to ensure proper engine operation.
2.1 Valves and Valve Train
The cylinder head houses the intake and exhaust valves that control the flow of air and exhaust gases.
- Intake Valves: Open to allow air (and fuel in port injection systems) into the combustion chamber
- Exhaust Valves: Open to allow exhaust gases to exit after combustion
- Valve Springs: Return valves to their closed position
- Valve Guides: Ensure valves move in a straight path
- Valve Seats: Provide a sealing surface for the valves when closed
2.2 Camshaft(s)
Many cylinder heads contain one or more camshafts that control the opening and closing of the valves.
- Single Overhead Cam (SOHC): One camshaft per cylinder head operates both intake and exhaust valves
- Double Overhead Cam (DOHC): Two camshafts per cylinder head, one for intake valves and one for exhaust valves, allowing more precise valve control
For more information on camshafts, you might find our camshaft function and types guide helpful.
2.3 Spark Plugs or Fuel Injectors
- In gasoline engines, the cylinder head contains threaded holes for spark plugs that ignite the air-fuel mixture
- In diesel engines, the cylinder head houses fuel injectors that spray fuel into the combustion chamber
Our spark plugs complete guide offers more detailed information about spark plug function and maintenance.
2.4 Coolant Passages
The cylinder head contains channels through which coolant flows to remove excess heat from the combustion process. These passages connect with the engine block’s cooling system.
2.5 Oil Passages
Separate channels allow engine oil to reach moving parts like the camshaft and valves for lubrication.
3. Types of Cylinder Heads
Cylinder heads vary in design based on the engine configuration and intended application.
3.1 By Engine Configuration
Different engine designs require different cylinder head configurations:
- Inline Engines: Use a single cylinder head covering all cylinders in a straight line
- V-Type Engines: Use two separate cylinder heads, one for each bank of cylinders
- Flat/Boxer Engines: Use two separate cylinder heads, one on each side of the engine
- Rotary Engines: Do not have traditional cylinder heads as they use a different combustion design
3.2 By Combustion Chamber Design
The shape of the combustion chamber in the cylinder head affects engine performance and efficiency:
- Hemispherical (Hemi)
- Dome-shaped combustion chamber
- Allows larger valves for better airflow
- Efficient combustion
- Common in performance applications
- Wedge
- Angled flat surface forming the combustion chamber
- Good mixture swirl for efficient combustion
- Simpler design than hemispherical
- Pentroof
- Four-valve design with a roof-like shape
- Excellent airflow and combustion efficiency
- Common in modern multi-valve engines
- Bathtub
- Shallow, rounded chamber
- Less efficient but simple and durable
- Found in older engine designs
3.3 Cylinder Head Comparison Table
| Cylinder Head Type | Advantages | Disadvantages | Common Applications |
|---|---|---|---|
| Cast Iron | Durable, heat resistant, less prone to warping | Heavy, poor heat dissipation | Older vehicles, trucks, heavy-duty applications |
| Aluminum | Lightweight, better heat dissipation | More prone to warping/cracking | Modern passenger vehicles, performance engines |
| SOHC | Simpler design, fewer parts | Less precise valve control | Economy vehicles, older designs |
| DOHC | Precise valve control, better performance | More complex, more expensive | Modern performance and efficiency-focused engines |
| Hemi | Large valve area, efficient combustion | More complex, often higher cost | Performance vehicles, some trucks |
| Pentroof | Excellent airflow, efficient combustion | More complex than simpler designs | Most modern multi-valve engines |
4. How the Cylinder Head Works with Other Engine Systems
The cylinder head doesn’t work in isolation—it’s part of an integrated system with other engine components.
4.1 Air Intake and Exhaust System
The cylinder head connects directly to the intake and exhaust manifolds:
- The intake side receives air (and fuel in some systems) from the intake manifold
- The exhaust side sends burned gases out through the exhaust manifold
For more information about air intake systems, you might find our air intake components guide useful.
4.2 Cooling System Integration
The cylinder head’s coolant passages connect to the engine block and radiator, forming a complete cooling circuit:
- Coolant enters the cylinder head from the engine block
- It absorbs heat from the combustion chambers
- The heated coolant flows out to the radiator
- After cooling in the radiator, it returns to the engine
4.3 Lubrication System Connection
Oil from the engine’s oil pump flows through dedicated passages in the cylinder head to lubricate:
- The camshaft and cam bearings
- Valve train components
- Any other moving parts within the cylinder head
4.4 Relationship with the Engine Block
The cylinder head attaches to the engine block using:
- Head Gasket: Seals the joint between the head and block, preventing leaks of coolant, oil, and combustion gases
- Head Bolts: Securely fasten the head to the block in a specific pattern and torque specification
Omar and Bilal Workshop Scenario:
Bilal: Why is the cylinder head bolted so tightly to the engine block?
Omar: The cylinder head must withstand extreme pressure from combustion. The head bolts are tightened to very specific torque values in a precise sequence to ensure even sealing pressure across the entire head gasket surface. This prevents leaks and maintains the structural integrity of the combustion chamber.
5. Common Cylinder Head Problems
Cylinder heads can develop several issues over time, especially if maintenance is neglected.
5.1 Cracking
Cylinder heads, particularly aluminum ones, can develop cracks due to:
- Overheating
- Thermal stress from rapid temperature changes
- Casting defects
- Age and metal fatigue
Cracks may occur in various locations:
- Between valve seats
- In combustion chamber areas
- In coolant passages
- Around bolt holes
5.2 Warping
When a cylinder head overheats, it may warp (distort from its flat shape), causing:
- Uneven sealing against the engine block
- Coolant or oil leaks
- Compression loss
- Blow-by of combustion gases
5.3 Valve Problems
Issues with valves in the cylinder head include:
- Burnt Valves: Caused by improper sealing, leading to hot gases leaking past the valve face
- Bent Valves: Often result from timing belt/chain failure, causing piston-to-valve contact
- Worn Valve Seats: Can prevent proper sealing
- Sticky Valves: Caused by carbon buildup or insufficient lubrication
5.4 Gasket Failures
While not strictly a cylinder head problem, head gasket failures are common and often related to cylinder head issues:
- Blown Head Gasket: Can result from head warping, overheating, or improper installation
- Symptoms: May include coolant mixing with oil, white exhaust smoke, overheating, or bubbles in the coolant reservoir
5.5 Carbon Buildup
Modern direct-injection engines may experience carbon buildup on:
- Intake valves
- Combustion chamber surfaces
- Valve stems
This can reduce airflow, cause rough idling, and decrease performance.
6. Symptoms of Cylinder Head Problems
Recognizing the signs of cylinder head issues can help prevent more serious engine damage.
6.1 Performance Issues
- Loss of engine power
- Rough idling or misfiring
- Poor fuel economy
- Engine running hot
6.2 Fluid Leaks
- Coolant leaking externally from the head/block joint
- Oil leaking from the valve cover gasket (though this is often a separate issue)
- Milky appearance in engine oil (indicating coolant mixing with oil)
6.3 Unusual Noises
- Ticking or tapping sounds from the valve train
- Pinging or knocking under load (could indicate detonation damaging the head)
6.4 Exhaust Issues
- White smoke from the exhaust (coolant burning)
- Blue smoke (oil burning)
- Excessive exhaust noise (could indicate exhaust leak at the head/manifold joint)
6.5 Visual Indicators
During inspection, you might notice:
- Cracks visible on the exterior
- Coolant or oil seepage at the head gasket joint
- Damaged or corroded components
Omar and Bilal Workshop Scenario:
Bilal: I noticed white smoke coming from my exhaust and my engine is running a bit rough. Could this be a cylinder head problem?
Omar: Those symptoms could indicate several issues, including a potential head gasket failure which is often related to the cylinder head. White smoke typically means coolant is entering the combustion chamber. We should perform a cooling system pressure test and check for combustion gases in the coolant before making any conclusions. Guessing without proper diagnosis can lead to unnecessary repairs.
7. Cylinder Head Diagnostics
Proper diagnosis is crucial before deciding on cylinder head repairs or replacement.
7.1 Visual Inspection
A thorough visual inspection can reveal:
- External cracks or damage
- Evidence of leaks
- Corrosion or damage to components
- Improper previous repairs
7.2 Compression Testing
A compression test can help identify:
- Worn or damaged valves
- Head gasket leaks between cylinders
- Cracked combustion chambers
Normal compression varies by engine but should generally be consistent across all cylinders (usually within 10% of each other).
7.3 Leak-Down Testing
More precise than a compression test, a leak-down test:
- Pressurizes each cylinder with compressed air
- Measures the percentage of air leakage
- Helps pinpoint where air is escaping (valves, rings, head gasket, or cracks)
7.4 Coolant System Testing
Several tests can help identify head-related cooling system issues:
- Pressure Testing: Pressurizes the cooling system to find external leaks
- Combustion Leak Testing: Checks for combustion gases in the coolant, indicating a head gasket failure or crack
- Dye Testing: Uses UV dye to find small coolant leaks
7.5 Oil Analysis
Analyzing engine oil can reveal:
- Coolant contamination (indicated by a milky appearance or chemical analysis)
- Metal particles that might indicate internal damage
7.6 Professional Cylinder Head Inspection
For a thorough assessment, a machine shop can:
- Check for warping using a straightedge and feeler gauges
- Perform magnetic particle inspection to find invisible cracks
- Test valve seats and guides for wear
- Measure valve stem and guide clearances
8. Cylinder Head Repair Options
Depending on the problem, several repair options may be available.
8.1 Resurfacing
If the cylinder head is warped but not cracked, a machine shop can:
- Machine the sealing surface flat again
- Remove just enough material to create a proper sealing surface
- Ensure the resurfacing doesn’t exceed manufacturer specifications
8.2 Crack Repair
Some cracks can be repaired, depending on their location and severity:
- Pinning: Inserting metal pins across the crack to seal it
- Welding: Specialized welding techniques (more common with cast iron heads)
- Epoxy: High-temperature epoxy for non-critical areas (less reliable for high-stress areas)
Note: Not all cracks are repairable, and some repairs may not be cost-effective compared to replacement.
8.3 Valve Service
Valve problems often require:
- Valve lapping or grinding to restore sealing surfaces
- Replacing damaged valves
- Replacing worn valve guides or seats
- Replacing valve springs
8.4 Complete Rebuild
A comprehensive cylinder head rebuild typically includes:
- Resurfacing
- Valve service
- New valve seals
- New camshaft seals (if applicable)
- Replacement of any damaged components
- thorough cleaning
8.5 Replacement
In cases of severe damage, replacement may be the most cost-effective option:
- New OEM cylinder head
- New aftermarket cylinder head
- Quality remanufactured cylinder head
- Used cylinder head (should be inspected before installation)
9. Cylinder Head Maintenance
Proper maintenance can help prevent many cylinder head problems.
9.1 Cooling System Maintenance
Since overheating is a primary cause of cylinder head damage, maintaining your cooling system is crucial:
- Check coolant level regularly
- Replace coolant according to manufacturer recommendations
- Inspect hoses and connections for leaks or deterioration
- Ensure the radiator and cooling fins are clean and undamaged
- Verify the cooling fan operates correctly
- Replace the thermostat at recommended intervals
9.2 Oil Maintenance
Clean oil helps protect cylinder head components:
- Change oil and filter at recommended intervals
- Use the correct oil type and viscosity
- Check for oil leaks that could lead to low oil levels
- Address oil consumption issues promptly
9.3 Timing System Maintenance
For interference engines (where piston-to-valve contact can occur), timing system maintenance is critical:
- Replace timing belt at recommended intervals (typically 60,000-100,000 miles)
- Inspect timing chains for wear or slack
- Replace timing chain tensioners and guides as needed
Our ignition timing guide provides additional information on timing-related topics.
9.4 Regular Inspections
Periodic visual inspections can catch problems early:
- Look for coolant or oil leaks around the cylinder head
- Listen for unusual engine noises
- Pay attention to changes in engine performance
- Have regular professional inspections
10. Cylinder Head Replacement Considerations
When replacing a cylinder head, several factors should be considered.
10.1 New vs. Remanufactured vs. Used
| Option | Pros | Cons | Best For |
|---|---|---|---|
| New OEM | Exact fit, full warranty, latest design | Highest cost | Vehicles under warranty, restoration projects |
| New Aftermarket | Lower cost than OEM, often good quality | Quality varies by manufacturer | Budget-conscious repairs on daily drivers |
| Remanufactured | Good balance of cost and quality, often comes with warranty | May have shorter warranty than new | Most repair situations |
| Used | Lowest cost | Unknown condition, no warranty, may need additional work | Extremely budget-limited situations |
10.2 Installation Requirements
Proper cylinder head installation is critical:
- Clean all mating surfaces thoroughly
- Install a new head gasket (never reuse)
- Follow the manufacturer’s torque sequence and specifications precisely
- Replace head bolts if they are torque-to-yield (one-time use) type
- Reconnect all components correctly
- Refill cooling system and bleed air from the system
- Perform proper break-in procedures if applicable
10.3 Related Components to Replace
When replacing a cylinder head, consider replacing these related components:
- Head gasket (always replace)
- Head bolts (if torque-to-yield type)
- Valve cover gasket
- Intake and exhaust manifold gaskets
- Thermostat (especially if overheating was an issue)
- Coolant
- Spark plugs (for gasoline engines)
- Timing belt/chain and associated components (if access is needed)
11. Cylinder Head Maintenance Checklist
Follow this checklist to help maintain your cylinder head and prevent problems:
Regular Maintenance (Every Oil Change)
- [ ] Check coolant level and condition
- [ ] Inspect for oil or coolant leaks around cylinder head
- [ ] Listen for unusual engine noises
Periodic Maintenance (Every 6-12 Months)
- [ ] Inspect all cooling system hoses
- [ ] Check radiator condition and cleanliness
- [ ] Verify cooling fan operation
- [ ] Test coolant freeze/boil protection
Scheduled Maintenance (According to Manufacturer)
- [ ] Replace coolant at recommended intervals
- [ ] Replace timing belt (if applicable) at specified mileage
- [ ] Perform valve clearance adjustment (if applicable)
- [ ] Replace spark plugs at recommended intervals
When Symptoms Appear
- [ ] Perform compression test if experiencing power loss or rough running
- [ ] Check for combustion gases in coolant if overheating occurs
- [ ] Have professional diagnosis before undertaking major repairs
- [ ] Address overheating issues immediately to prevent cylinder head damage
12. Frequently Asked Questions About Cylinder Heads
Q1: How long should a cylinder head last?
A properly maintained cylinder head can last the lifetime of the engine. However, factors like overheating, poor maintenance, or manufacturing defects can shorten its lifespan. Most cylinder head issues result from cooling system problems rather than normal wear.
Q2: Can I drive with a cracked cylinder head?
Driving with a cracked cylinder head is not recommended. Depending on the crack’s location, it could lead to coolant loss, oil contamination, loss of compression, or even catastrophic engine failure. If you suspect a cracked cylinder head, have it inspected by a professional as soon as possible.
Q3: What causes cylinder heads to crack?
The most common cause of cylinder head cracking is overheating. Other causes include thermal stress from rapid temperature changes, casting defects, age and metal fatigue, and improper torque during installation.
Q4: How much does it cost to repair or replace a cylinder head?
Costs vary widely depending on the vehicle, the extent of damage, and your location. Cylinder head resurfacing might cost $200-$500, while a complete rebuild could be $800-$2,000. Replacement with a remanufactured head typically ranges from $1,000-$3,000, including installation. New OEM heads can be significantly more expensive.
Q5: Can I replace a cylinder head myself?
While technically possible for experienced DIY mechanics, cylinder head replacement is a complex job that requires specialized tools and knowledge. Incorrect installation can lead to immediate failure or premature problems. For most vehicle owners, this is a job best left to professionals.
Q6: What’s the difference between a cylinder head and an engine block?
The engine block is the main structure of the engine, containing the cylinders where combustion occurs. The cylinder head sits on top of the block, sealing the cylinders and housing the valves, camshafts, and other components. Together, they form the complete combustion chamber.
Q7: How do I know if my cylinder head is warped?
Warped cylinder heads typically show symptoms similar to a blown head gasket: overheating, coolant loss, poor engine performance, or white exhaust smoke. However, definitive diagnosis requires removing the head and checking it with a straightedge and feeler gauges to measure any distortion.
Q8: Are aluminum cylinder heads less durable than cast iron ones?
Not necessarily. While aluminum heads are more prone to warping and cracking under extreme conditions, they offer superior heat dissipation and reduced weight. Modern aluminum heads are designed to withstand normal operating conditions effectively. The key is proper maintenance, especially of the cooling system.
Q9: Can carbon buildup damage my cylinder head?
Excessive carbon buildup can cause several issues: it can prevent valves from seating properly, leading to burnt valves; it can increase compression and cause detonation; and it can interfere with proper airflow. Regular maintenance and using quality fuel can help minimize carbon buildup.
Q10: Is cylinder head repair always necessary when the head gasket fails?
Not always. If the cylinder head is flat and undamaged, you may only need to replace the head gasket. However, it’s standard practice to have the head inspected and resurfaced when replacing the gasket to ensure proper sealing. If the head is warped or cracked, additional repairs or replacement will be necessary.
13. Conclusion
The cylinder head is a critical engine component that deserves proper attention and maintenance. By understanding its function, recognizing symptoms of problems, and following appropriate maintenance practices, you can help ensure your engine remains reliable and efficient.
Remember that when it comes to cylinder head issues, early detection and proper diagnosis are key. Addressing cooling system problems promptly, following maintenance schedules, and seeking professional help when needed can prevent minor issues from becoming major expenses.
For more information about related engine components, you might find these resources helpful:
If you’re experiencing symptoms that might indicate cylinder head problems, consult with a qualified automotive professional who can provide an accurate diagnosis and recommend appropriate solutions.
