Ignition Timing Explained: How It Affects Engine Performance

Disclaimer: This article provides general information only. For specific vehicle repairs or modifications, consult a qualified professional mechanic. Vehicle specifications vary by make, model, and year.

Introduction to Ignition Timing:

Ignition timing refers to the precise moment when the spark plug fires in relation to the piston’s position in the cylinder. This critical aspect of engine operation directly impacts performance, fuel efficiency, and emissions. When properly set, ignition timing ensures that the combustion process occurs at the optimal moment during the engine’s power stroke, maximizing the force applied to the piston while minimizing harmful effects like engine knock or incomplete combustion.

Throughout this guide, you may see Bilal and Omar discussing vehicle systems, maintenance procedures, and troubleshooting situations. They are fictional educational characters created by Remliks Solutions to help explain automotive and truck concepts in a practical and engaging way.

What is Ignition Timing?

Ignition timing is measured in degrees of crankshaft rotation before the piston reaches top dead center (TDC) on its compression stroke. For example, if your vehicle’s ignition timing is set to 10 degrees before TDC (often written as 10° BTDC), it means the spark plug fires when the crankshaft has rotated 10 degrees before the piston reaches the highest point in its travel.

Omar and Bilal Workshop Scenario

Bilal: I’ve heard mechanics talking about “timing” but I’m confused about what exactly they’re adjusting. Can you explain what ignition timing really means?

Omar: Think of it this way – when you push a child on a swing, you don’t push when they’re already moving away from you. You push just before they reach the highest point of their backswing. Similarly, the spark needs to fire just before the piston reaches the top of its stroke, allowing time for the fuel-air mixture to start burning and create maximum pressure at the right moment.

Bilal: So why not just fire the spark exactly at the top?

Omar: Because combustion isn’t instant. It takes time for the flame to spread through the combustion chamber. If we waited until the piston was at the top, the pressure wouldn’t build up until the piston was already moving down, reducing the force applied to the crankshaft.

The Science Behind Ignition Timing

To understand ignition timing fully, we need to examine the combustion process in detail. When the spark plug fires, it doesn’t create an explosion but rather a controlled burn that propagates through the fuel-air mixture.

Combustion Process Timeline

1. Spark initiation: The spark plug fires, creating a small kernel of flame
2. Flame growth: The flame front expands outward from the spark plug
3. Pressure rise: As more mixture burns, cylinder pressure increases
4. Peak pressure: Maximum pressure occurs roughly 10-20° after TDC in most engines
5. Power stroke: The expanding gases push the piston down

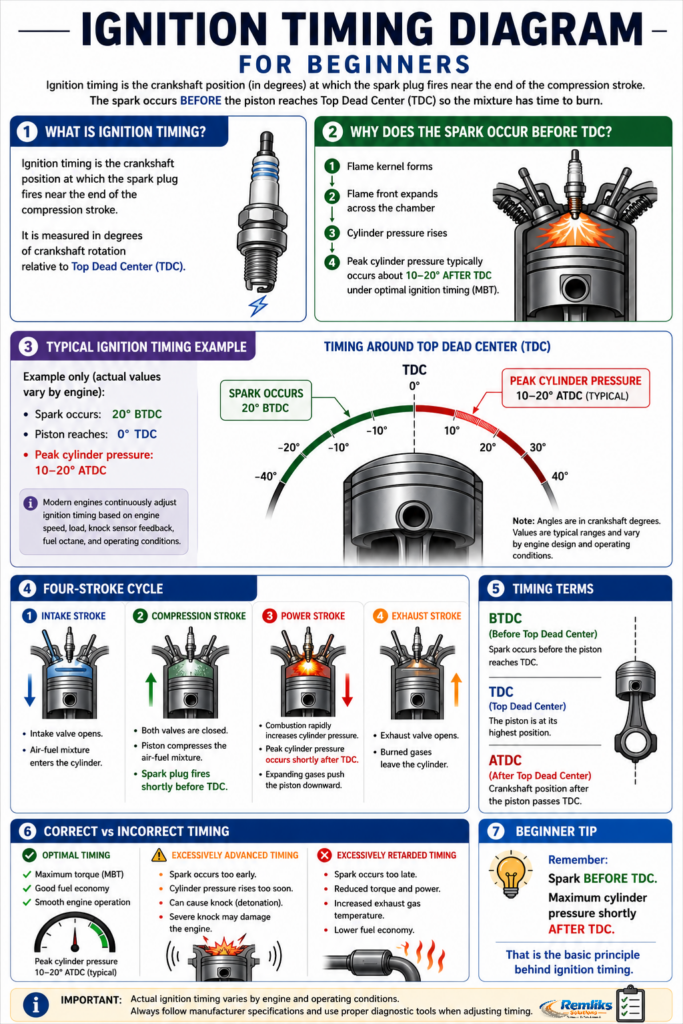

Ignition Timing Diagram

The goal of proper ignition timing is to have peak cylinder pressure occur at the optimal crank angle (typically 10-20° after TDC) to maximize the leverage applied to the crankshaft while preventing harmful conditions like detonation.

Types of Ignition Timing Systems

Ignition timing control has evolved significantly over automotive history. Let’s examine the main types:

1. Fixed Ignition Timing

The earliest ignition systems used fixed timing that didn’t change with engine speed or load. These simple systems worked adequately at one specific operating condition but performed poorly across the engine’s full range.

2. Mechanical Advance (Centrifugal Advance)

This system uses weights and springs inside the distributor to advance timing as engine speed increases. At higher RPMs, the weights are thrown outward by centrifugal force, rotating the breaker plate and advancing the timing.

3. Vacuum Advance

A vacuum diaphragm connected to the intake manifold advances timing during light-load conditions when manifold vacuum is high. This improves fuel efficiency during cruising.

4. Electronic Ignition Systems

These systems use electronic control modules to determine optimal timing based on various inputs. They eliminated the mechanical wear issues of distributors while providing more precise control.

5. Computer-Controlled Ignition Timing (Modern Systems)

Today’s engines use the engine control module (ECM) or powertrain control module (PCM) to precisely control ignition timing. These systems adjust timing thousands of times per second based on:

• Engine speed (RPM)
• Engine load (manifold absolute pressure or mass airflow)
• Coolant temperature
• Intake air temperature
• Knock sensor input
• Throttle position

Comparison of Ignition Timing Systems

System Type	Advantages	Disadvantages	Common Applications
Fixed Timing	Simple, inexpensive	Poor performance across operating range	Very early automobiles, small engines
Mechanical Advance	Self-adjusting with RPM, no electronics needed	Limited adjustment parameters, mechanical wear	Classic cars, some small engines
Vacuum Advance	Improved fuel economy, adapts to load	Complex linkage, sensitive to vacuum leaks	Vehicles from 1950s-1980s
Electronic Ignition	More precise, reduced maintenance	Still limited adjustment capability	Vehicles from 1970s-1990s
Computer-Controlled	Extremely precise, adapts to all conditions, self-diagnosing	Complex, requires specialized equipment to service	All modern vehicles

Why Ignition Timing Matters

Proper ignition timing affects nearly every aspect of engine operation:

1. Engine Performance

The right ignition timing ensures maximum cylinder pressure at the optimal crank angle, delivering the best possible power output. Advanced timing (firing earlier) typically increases power up to a point, while retarded timing (firing later) reduces power.

2. Fuel Efficiency

Optimal timing ensures complete combustion of the fuel-air mixture, extracting maximum energy from each drop of fuel. This directly translates to better fuel economy.

3. Emissions

Proper timing helps ensure complete combustion, reducing unburned hydrocarbons and carbon monoxide emissions. However, overly advanced timing can increase nitrogen oxide (NOx) emissions due to higher combustion temperatures.

4. Engine Longevity

Incorrect timing can cause harmful conditions:

• Over-advanced timing: Can lead to detonation (knock), which can damage pistons, rings, and bearings
• Over-retarded timing: Can cause excessive exhaust gas temperatures, potentially damaging valves and exhaust components

5. Drivability

Proper timing ensures smooth idle, responsive acceleration, and consistent power delivery.

How Ignition Timing Affects Engine Performance

Ignition timing has a direct effect on engine power. When the spark fires too late, the fuel burns after the piston has already started moving down. This late burn reduces force on the piston. As a result, the engine produces less power and uses more fuel.

When timing is gradually advanced, power increases. The burning mixture creates peak pressure at the right moment, just after the piston passes top dead center. This ideal setting is called Maximum Brake Torque (MBT) timing. It gives the best balance of power and efficiency.

However, more advance does not mean more power. Beyond MBT timing, power drops for two reasons.

First, the mixture burns too early. The expanding gases push against the piston while it is still moving up. This works against the engine instead of helping it.

Second, excessive advance causes very high pressure and temperature inside the cylinder. The fuel-air mixture then ignites on its own before the spark reaches it. This uncontrolled ignition is called knock or detonation. It causes a sharp power loss and may damage the engine over time.

For these reasons, the best ignition timing is not the most advanced setting. Instead, it is the setting that creates peak pressure at the most effective crank angle without causing knock.

Omar and Bilal Workshop Scenario

Bilal: If advancing the timing increases power, why don’t we just set it to maximum advance?

Omar: There are several reasons. First, each engine design has a specific timing curve that provides the best overall performance. Second, fuel quality limits how much advance an engine can tolerate before knock occurs. Third, driving conditions change – what’s optimal at sea level on a cool day might cause knock at high altitude on a hot day.

Bilal: So modern engines must adjust timing constantly?

Omar: Exactly. That’s why computer-controlled ignition systems can adjust timing many times per second based on numerous inputs. They can run closer to the optimal timing curve while avoiding knock by retarding timing only when necessary.

Signs of Incorrect Ignition Timing

Recognizing the symptoms of improper ignition timing can help diagnose problems early:

Symptoms of Over-Advanced Timing

• Engine knock or pinging (especially under load or acceleration)
• Rough idle
• Hesitation or stumble during acceleration
• Poor fuel economy
• Overheating
• Possible engine damage in severe cases

Symptoms of Over-Retarded Timing

• Sluggish acceleration
• Poor fuel economy
• Excessive exhaust smoke
• Higher than normal exhaust temperatures
• Lack of power, especially at low RPM
• Possible catalytic converter damage over time

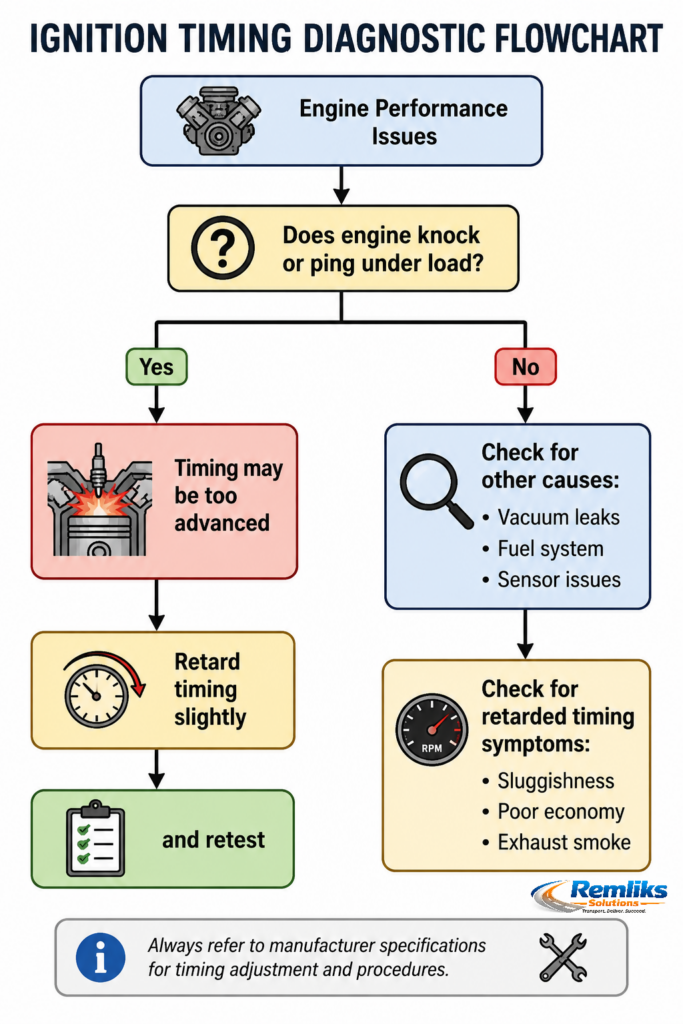

Diagnostic Flowchart for Ignition Timing Issues

How to Check and Adjust Ignition Timing

The method for checking and adjusting ignition timing depends on the type of system in your vehicle.

Checking Timing on Distributor-Based Systems

1. Prepare the engine:

• Ensure engine is at operating temperature
• Disconnect and plug vacuum advance hose (if applicable)
• Connect timing light according to manufacturer’s instructions

1. Check base timing:

• Start engine and aim timing light at timing marks
• Observe the relationship between the mark on the harmonic balancer and the timing scale on the engine
• Compare to specifications in the service manual

1. Adjust if necessary:

• Loosen distributor hold-down bolt
• Rotate distributor slightly to adjust timing
• Tighten bolt and recheck
• Reconnect vacuum advance (if applicable)

Checking Timing on Computer-Controlled Systems

Modern vehicles typically don’t allow manual timing adjustment. Instead:

1. Connect a scan tool that can display ignition timing data
2. Monitor timing while the engine runs through different operating conditions
3. Compare readings to specifications in the service manual
4. Diagnose issues based on deviations from expected values

Omar and Bilal Workshop Scenario

Bilal: I tried to check the timing on my 2018 sedan, but I can’t find any timing marks. Am I missing something?

Omar: Newer vehicles with coil-on-plug ignition systems and no distributor typically don’t have external timing marks. The timing is controlled entirely by the engine computer and can only be checked with a scan tool that displays live data.

Bilal: So there’s no way to adjust it myself?

Omar: Correct. The computer determines the optimal timing based on numerous inputs. If there’s a timing issue, it’s usually due to a sensor problem, mechanical issue, or computer reprogramming need, not a simple adjustment. This requires professional diagnostic equipment.

Advanced Ignition Timing Concepts

For those seeking a deeper understanding, let’s explore some advanced concepts:

Knock Control Systems

Modern engines use knock sensors (typically piezoelectric accelerometers) to detect the high-frequency vibrations characteristic of detonation. When knock is detected, the engine control module immediately retards timing, usually in small steps (2-4°), then gradually advances it again until knock reoccurs or the maximum allowed advance is reached.

Dynamic Timing Optimization

Some advanced engine management systems use sophisticated algorithms to continuously optimize timing based on:

• Individual cylinder control (adjusting timing for each cylinder separately)
• Adaptive learning (adjusting base timing maps based on long-term observations)
• Altitude compensation (adjusting for changes in barometric pressure)
• Fuel quality adaptation (adjusting for octane rating variations)

Variable Valve Timing Interaction

In engines with variable valve timing (VVT), the ignition timing must work in concert with valve timing changes. As the intake valve closing point changes, the effective compression ratio changes, requiring timing adjustments to maintain optimal combustion phasing.

Common Ignition Timing Problems and Solutions

Problem 1: Base Timing Incorrect

Cause: Distributor was removed and reinstalled incorrectly, or timing adjustment slipped.

Solution:

• Recheck timing using a timing light
• Adjust to specifications
• Verify timing marks are correct (some engines had incorrect marks from the factory)

Problem 2: Mechanical Advance Not Functioning

Cause:

• Weights stuck due to corrosion or debris
• Broken springs
• Worn distributor shaft

Solution:

• Remove distributor and inspect advance mechanism
• Clean and lubricate as needed
• Replace worn components
• Consider upgrading to electronic ignition

Problem 3: Vacuum Advance Not Working

Cause:

• Leaking vacuum diaphragm
• Blocked or leaking vacuum hose
• Incorrect vacuum source connection

Solution:

• Test diaphragm with a hand vacuum pump
• Replace if it doesn’t hold vacuum
• Check and replace hoses as needed
• Verify connection to correct vacuum port (ported vs. manifold vacuum)

Problem 4: Computer-Controlled Timing Issues

Cause:

• Faulty crankshaft or camshaft position sensor
• Poor electrical connections
• Failed knock sensor
• Software issues

Solution:

• Check for diagnostic trouble codes
• Test sensors according to service manual procedures
• Check wiring and connections
• Reprogram or update engine computer if necessary

Ignition Timing Maintenance Tips

Proper maintenance can help ensure your ignition timing system functions correctly:

For Distributor-Based Systems

1. Regular inspection: Check distributor cap, rotor, and wires for wear or damage
2. Lubrication: Some distributors require periodic lubrication of the advance mechanism
3. Timing verification: Check base timing periodically, especially after any engine work
4. Vacuum line inspection: Check vacuum advance lines for cracks or deterioration

For Computer-Controlled Systems

1. Sensor maintenance: Keep crankshaft and camshaft position sensors clean and properly connected
2. Knock sensor integrity: Ensure knock sensor is properly torqued and connected
3. Electrical system health: Maintain good battery and charging system condition
4. Regular scanning: Periodically check for stored codes or pending issues

Ignition Timing and Performance Modifications

When modifying an engine for increased performance, ignition timing often needs adjustment:

Naturally Aspirated Engine Modifications

For engines with increased compression ratio, camshaft changes, or improved breathing:

• Typically require more advance at high RPM
• May need less advance at low RPM with aggressive cams
• Often benefit from custom ignition timing curves

Forced Induction Applications

Turbocharged or supercharged engines have special timing considerations:

• Generally require less total advance due to increased cylinder pressure
• Must account for varying boost levels
• Often use boost-referenced timing retard systems
• Require high-octane fuel to prevent knock with advanced timing

Fuel Quality Considerations

Higher octane fuel allows more advanced timing without knock:

• Premium fuel may enable 2-4° more advance in some engines
• Some modern engines can adapt to different fuel grades
• Always follow manufacturer’s recommendations for fuel octane

Ignition Timing Checklist

Use this checklist to ensure proper ignition timing function:

For Distributor-Based Systems

• [ ] Verify timing marks are correct for your specific engine
• [ ] Check base timing with engine at operating temperature
• [ ] Disconnect vacuum advance when checking base timing
• [ ] Verify mechanical advance operation by increasing RPM
• [ ] Test vacuum advance with a hand pump
• [ ] Check vacuum hose for leaks or cracks
• [ ] Inspect distributor cap, rotor, and components for wear
• [ ] Verify proper spark plug type and condition
• [ ] Check for worn distributor shaft or bushings
• [ ] Ensure ignition wires are in good condition and properly routed

For Computer-Controlled Systems

• [ ] Check for any diagnostic trouble codes
• [ ] Verify crankshaft position sensor signal with oscilloscope if possible
• [ ] Check camshaft position sensor operation
• [ ] Test knock sensor circuit
• [ ] Inspect all related wiring and connectors
• [ ] Verify engine operating temperature is within normal range
• [ ] Check fuel pressure and quality
• [ ] Ensure battery voltage is within specifications
• [ ] Look for any technical service bulletins related to ignition timing
• [ ] Consider professional diagnostic equipment for detailed analysis

Frequently Asked Questions About Ignition Timing

Q1: What happens if ignition timing is too advanced?

A: Over-advanced timing can cause engine knock or pinging, especially under load. This knocking sound is actually the fuel-air mixture detonating unevenly rather than burning smoothly. Prolonged operation with excessive advance can damage pistons, rings, and bearings. In severe cases, it may cause holes in pistons or broken ring lands.

Q2: Can incorrect ignition timing damage my catalytic converter?

A: Yes, both over-advanced and over-retarded timing can potentially damage the catalytic converter. Over-retarded timing causes unburned fuel to enter the exhaust, where it can burn in the converter and cause overheating. Over time, this can melt the catalyst substrate. Over-advanced timing can increase NOx emissions, which may also affect converter efficiency over time.

Q3: How often should I check my ignition timing?

A: For distributor-based systems, checking timing annually or whenever you perform a tune-up is good practice. For computer-controlled systems, timing is constantly monitored and adjusted by the engine computer, but you should still verify proper operation if you notice performance issues. After any engine work that involves removing the distributor or timing chain, timing should always be rechecked.

Q4: Can I advance timing for better fuel economy?

A: In some cases, slightly advancing the timing (within safe limits) can improve fuel economy by ensuring more complete combustion. However, this must be done carefully to avoid knock. For computer-controlled vehicles, the engine computer already optimizes timing for fuel economy under light-load conditions. Manually advancing timing beyond factory specifications may cause more harm than good.

Q5: Does altitude affect ignition timing requirements?

A: Yes, higher altitudes with lower air density generally allow more ignition advance without knock. This is why some older vehicles had altitude compensators on their distributors. Modern engine control systems automatically adjust for altitude changes using the MAP or MAF sensor readings.

Q6: What’s the difference between base timing and total timing?

A: Base timing refers to the initial timing setting with the advance mechanisms disconnected or disabled. Total timing is the sum of base timing plus all advance (mechanical, vacuum, and computer-controlled) at a given RPM and load condition. For example, an engine might have 10° base timing and 30° total timing at 3,000 RPM.

Q7: Can a faulty knock sensor affect ignition timing?

A: Absolutely. The knock sensor is a critical input for timing control in modern engines. If the knock sensor fails or provides incorrect signals, the engine computer may retard timing excessively, causing poor performance and fuel economy. Conversely, if the computer can’t detect knock due to a faulty sensor, it may maintain too much advance, potentially leading to engine damage.

Q8: Is it normal for ignition timing to vary between cylinders?

A: In older distributor-based systems, timing is essentially the same for all cylinders since they all fire from the same distributor. However, in modern coil-on-plug systems with sophisticated engine management, the computer can vary timing slightly between cylinders to compensate for manufacturing variations, fuel distribution differences, or to optimize emissions.

Q9: How does ignition timing affect emissions testing?

A: Ignition timing significantly impacts emissions. Over-advanced timing can increase NOx emissions due to higher combustion temperatures. Over-retarded timing can increase hydrocarbon (HC) and carbon monoxide (CO) emissions due to incomplete combustion. Proper timing helps ensure all emissions are within acceptable ranges during testing.

Q10: Can I adjust ignition timing on my modern car for better performance?

A: Most modern vehicles don’t allow manual timing adjustment. Instead, performance gains are typically achieved through engine computer reprogramming (chipping or tuning) that modifies the ignition timing maps along with fuel delivery and other parameters. This should only be done by professionals with proper equipment and knowledge of your specific engine.

Conclusion

Understanding ignition timing is essential for anyone interested in how engines work or how to maintain them properly. From the simple fixed timing of early automobiles to the sophisticated computer-controlled systems of today, the goal has remained the same: to ignite the fuel-air mixture at precisely the right moment for optimal performance, efficiency, and longevity.

Whether you’re maintaining a classic vehicle with a distributor or diagnosing a modern engine with computer-controlled timing, the principles outlined in this guide provide a foundation for understanding this critical aspect of engine operation. Remember that while basic timing checks can be performed by knowledgeable enthusiasts, complex timing issues on modern vehicles often require professional diagnostic equipment and expertise.

By recognizing the symptoms of incorrect timing and understanding the underlying principles, you can better communicate with your mechanic and make informed decisions about your vehicle’s maintenance and repair needs.

For more information about related topics, explore our Engine System section or check out our Ignition System Components Guide for a comprehensive look at the entire ignition system.
