Connecting Rods Explained: Function, Types, and Maintenance.

Disclaimer: This article provides general information only. It does not replace professional mechanical advice or service. Always consult qualified technicians for specific vehicle issues.

Throughout this guide, you may see Bilal and Omar discussing vehicle systems, maintenance procedures, and troubleshooting situations. They are fictional educational characters created by Remliks Solutions to help explain automotive and truck concepts in a practical and engaging way.

1. What Are Connecting Rods?

Connecting rods are vital engine components that transfer force from the piston to the crankshaft. These precision-engineered parts convert the linear (up-and-down) motion of the pistons into the rotational motion that ultimately drives your vehicle’s wheels.

In internal combustion engines, connecting rods experience extreme forces during each combustion cycle. They must withstand thousands of pounds of pressure while rotating at high speeds, making their design and material critical to engine reliability.

2. The Function of Connecting Rods in Engine Operation

Connecting rods serve as the critical link between the piston assembly and the crankshaft. When fuel and air combust in the cylinder, the expanding gases push the piston downward. The connecting rod transfers this force to the crankshaft, causing it to rotate.

This conversion of linear to rotational motion is fundamental to how all piston engines work. Without properly functioning connecting rods, the engine cannot transform combustion energy into usable mechanical power.

Omar and Bilal Workshop Scenario

Bilal: I understand that connecting rods connect the piston to the crankshaft, but how do they handle all that pressure from combustion?

Omar: Good question. Connecting rods are designed with specific geometry and materials to handle these extreme forces. They undergo a complex loading pattern – first compression during the power stroke, then tension during the intake stroke. The I-beam or H-beam design provides strength while keeping weight to a minimum.

Bilal: Why is weight important for connecting rods?

Omar: Because the rod and piston assembly must accelerate and decelerate with each engine revolution. Heavier components create more inertia, which can limit maximum engine speed and increase wear. This is why high-performance engines often use lighter connecting rods made from specialized materials.

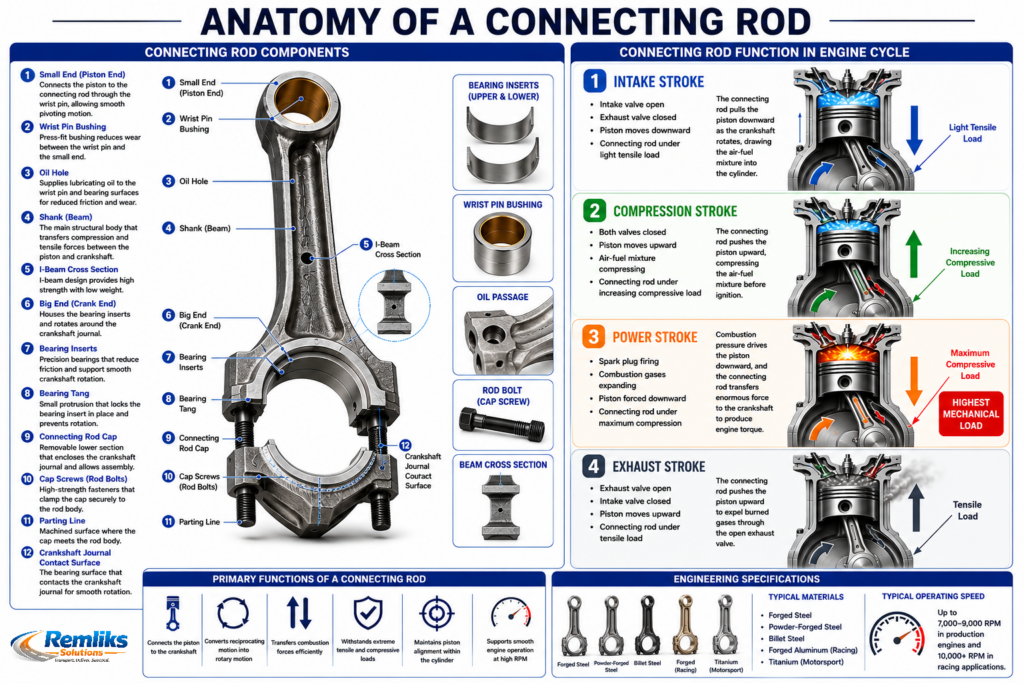

3. Anatomy of a Connecting Rod

Understanding the parts of a connecting rod helps in identifying problems and performing proper maintenance. A typical connecting rod consists of several key components:

4. Types of Connecting Rods

Manufacturers design different types of connecting rods based on the engine’s intended use, performance requirements, and cost considerations. Understanding these types helps in identifying what might be in your vehicle and what alternatives exist for specific applications.

4.1 I-Beam Connecting Rods

I-beam connecting rods have a cross-section resembling the letter “I” when viewed from the end. This design provides excellent strength-to-weight ratio for most street applications. The vertical web resists bending forces, while the flanges at top and bottom resist twisting.

Most production vehicles use I-beam connecting rods because they offer a good balance of strength, weight, and manufacturing cost. They perform well in standard operating conditions but may not be ideal for extreme high-rpm or high-boost applications.

4.2 H-Beam Connecting Rods

H-beam connecting rods feature a cross-section that resembles the letter “H.” This design offers greater resistance to bending forces compared to I-beams, making them popular in high-performance and racing applications.

The H-beam design typically has more material in critical stress areas, which increases strength but also adds weight. Many aftermarket performance connecting rods use this design for turbocharged, supercharged, or high-compression engines that generate extreme cylinder pressures.

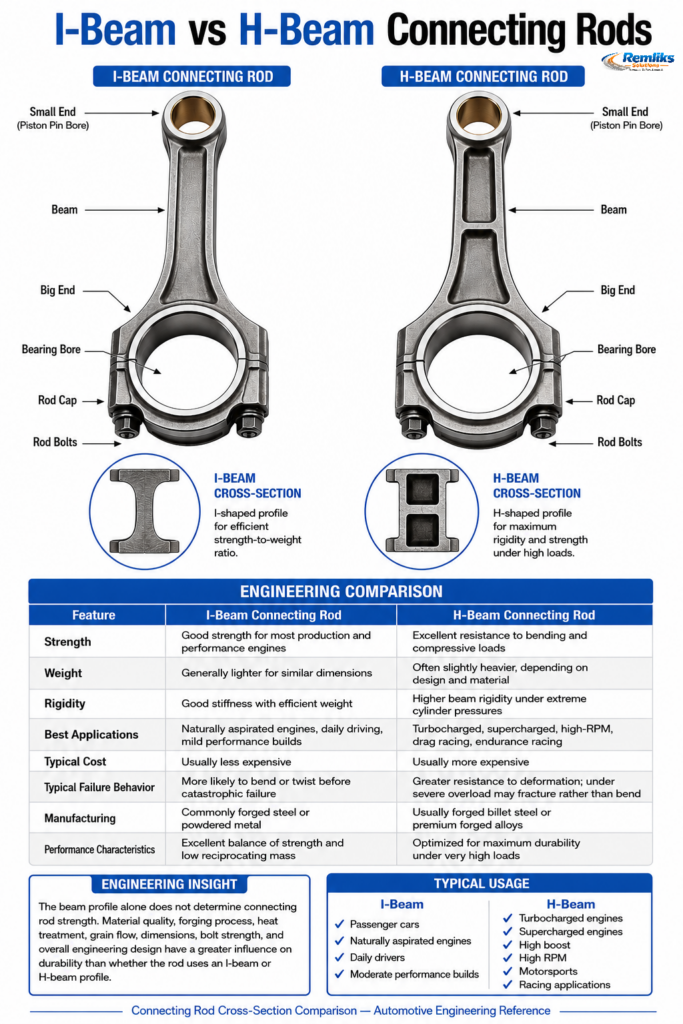

4.3 Comparison of I-Beam and H-Beam Connecting Rods

5. Materials Used in Connecting Rod Manufacturing

The material composition of connecting rods significantly affects their strength, durability, and weight. Manufacturers select materials based on the intended application and performance requirements.

5.1 Cast Iron Connecting Rods

Many standard production engines use cast iron connecting rods. Cast iron offers good wear resistance and adequate strength for normal driving conditions at a lower manufacturing cost. However, cast iron rods are heavier and less durable under extreme conditions compared to forged alternatives.

5.2 Forged Steel Connecting Rods

Forged steel connecting rods undergo a process where the metal is shaped under high pressure, aligning the grain structure of the metal for improved strength. This process creates connecting rods that are stronger and more resistant to fatigue than cast versions.

Most performance-oriented vehicles and many modern production engines use forged steel connecting rods. They offer an excellent balance of strength, weight, and cost for demanding applications.

5.3 Powdered Metal Connecting Rods

Powdered metal connecting rods represent a newer manufacturing technique where metal powder is compressed and heated to form the final shape. This process allows for precise control of the material properties and can create connecting rods with excellent strength-to-weight ratios.

Many modern engines, including those from major manufacturers, now use powdered metal connecting rods due to their consistent quality, reduced material waste, and good performance characteristics.

5.4 Titanium and Aluminum Connecting Rods

For high-performance and racing applications, some connecting rods are made from titanium or aluminum alloys. These materials offer significant weight reduction, which can improve engine response and allow higher maximum rpm.

However, these specialized materials come with considerable drawbacks. Titanium connecting rods are extremely expensive and can be brittle. Aluminum rods have excellent strength-to-weight ratios but have limited fatigue life and may require frequent replacement in racing applications.

6. How Connecting Rods Work in the Engine Cycle

To fully appreciate the function of connecting rods, it’s helpful to understand their role throughout the four-stroke engine cycle.

Omar and Bilal Workshop Scenario

Bilal: I’m still not completely clear on how the connecting rod works during each stroke of the engine. Can you explain that?

Omar: Certainly. Let’s go through each stroke and what happens to the connecting rod. During the intake stroke, the piston moves down the cylinder as the intake valve opens. The connecting rod experiences tension as it pulls the crankshaft around.

Bilal: And during compression?

Omar: The piston moves up to compress the fuel-air mixture. The connecting rod continues to experience tension as it transfers the upward force from the piston to the crankshaft. The tension actually increases as the piston approaches top dead center because of the angularity of the rod.

Bilal: What about the power stroke? That must be when the most force is applied.

Omar: Exactly right. When the spark plug fires, the rapidly expanding gases push the piston down with tremendous force. Now the connecting rod experiences extreme compression rather than tension. This is when the rod must be strongest to transfer this power to the crankshaft without deforming or failing.

Bilal: And the exhaust stroke?

Omar: The piston moves up again to push out the burnt gases. The connecting rod returns to experiencing tension as it transfers this upward force to the crankshaft. This cycle repeats thousands of times per minute when the engine is running.

7. Common Connecting Rod Problems and Symptoms

Like all engine components, connecting rods can develop issues that affect engine performance and reliability. Recognizing these problems early may help prevent more serious engine damage.

7.1 Connecting Rod Bearing Failure

The bearing inserts that sit between the connecting rod and crankshaft journal can wear out or fail over time. This often results from inadequate lubrication, contamination in the oil, or normal wear over high mileage.

Symptoms of bearing failure include:

• Low oil pressure
• Knocking or rattling noise from the engine, especially when cold
• Metal shavings in the oil
• Reduced engine performance

7.2 Bent Connecting Rods

Connecting rods can bend if they experience forces beyond their design limits. This might occur from hydrolocking (liquid entering the combustion chamber), over-revving the engine, or pre-ignition/detonation events.

Symptoms of a bent connecting rod include:

• Engine vibration, especially at certain RPM ranges
• Reduced compression in the affected cylinder
• Metallic knocking sounds
• Oil consumption

7.3 Broken Connecting Rods

In severe cases, connecting rods can break completely. This catastrophic failure often results from fatigue, material defects, or extreme forces beyond the rod’s capacity.

A broken connecting rod typically causes:

• Sudden, loud knocking or banging from the engine
• Immediate loss of power
• Oil pressure drop
• Potential engine damage as the broken rod may puncture the engine block

7.4 Stretched Connecting Rod Bolts

The bolts that hold the connecting rod cap to the rod body can stretch over time, especially if they were not properly torqued during assembly or if the engine has been subjected to high loads.

Symptoms include:

• Increasing rod knock noise
• Loose feeling when checking rod end play
• Potential bearing damage from reduced clamping force

8. Diagnosing Connecting Rod Issues

Proper diagnosis of connecting rod problems requires a systematic approach and often specialized tools. Here are some methods technicians use to identify connecting rod issues.

8.1 Listening for Rod Knock

A classic symptom of connecting rod bearing wear is a knocking sound that increases with engine RPM and load. This “rod knock” typically sounds deeper and more metallic than other engine noises.

To identify rod knock:

1. Start the engine and listen carefully for knocking sounds
2. Note if the sound increases with engine speed
3. Try shorting out spark plugs one at a time (with appropriate precautions) to see if the sound changes
4. Use a mechanic’s stethoscope to isolate the source of the noise

8.2 Oil Pressure Testing

Low oil pressure can indicate bearing wear, including connecting rod bearings. Connect a mechanical oil pressure gauge to verify the engine’s oil pressure against manufacturer specifications.

If oil pressure is low and increases when engine speed increases, this may indicate worn bearings, including connecting rod bearings.

8.3 Oil Analysis

Sending a sample of engine oil for analysis can reveal metal particles that indicate wear of engine components. High levels of iron or other bearing metals in the oil may suggest connecting rod bearing wear.

8.4 Cylinder Compression Testing

A compression test can help identify if a connecting rod is bent. If one cylinder shows significantly lower compression than others, and the issue isn’t related to valves or the head gasket, a bent connecting rod might be the cause.

Omar and Bilal Workshop Scenario

Bilal: I’m hearing a knocking sound from my engine that gets louder when I accelerate. How can I tell if it’s a connecting rod issue?

Omar: First, we should perform a systematic diagnosis rather than guessing. Let’s connect a mechanical oil pressure gauge to check if the pressure is within specifications. Low oil pressure often accompanies connecting rod bearing wear.

Bilal: What if the oil pressure is normal?

Omar: Then we can use a mechanic’s stethoscope to isolate exactly where the noise is coming from. We’ll listen at each cylinder along the oil pan rail where the connecting rods are located. If the noise is loudest at a specific point corresponding to a connecting rod, that gives us a strong indication.

Bilal: Is there any other test we should do?

Omar: Yes, we can also try disabling cylinders one at a time by removing the spark plug wire or fuel injector connector. If the knock changes significantly when a specific cylinder is disabled, that cylinder’s connecting rod bearing is likely the culprit.

9. Connecting Rod Maintenance and Inspection

While connecting rods are internal engine components that aren’t part of routine maintenance, proper engine care can help extend their life. When an engine is disassembled, thorough inspection of connecting rods is essential.

9.1 Preventive Maintenance for Connecting Rod Health

Although you can’t directly maintain connecting rods, these practices help ensure their longevity:

• Regular oil changes with the correct oil type and viscosity
• Using quality oil filters to remove contaminants
• Avoiding over-revving the engine
• Addressing engine knocking or pinging immediately
• Ensuring proper engine warm-up before high-load operation
• Maintaining proper coolant levels to prevent overheating

9.2 Visual Inspection During Engine Rebuild

When an engine is disassembled, each connecting rod should be carefully inspected:

1. Check for any visible cracks or damage
2. Look for signs of overheating (bluing of the metal)
3. Inspect for bent or twisted rods by comparing to specifications
4. Examine the bearing surfaces for wear patterns or damage
5. Check rod bolts for stretching or damage (always replace rod bolts during rebuilds)

9.3 Measuring Connecting Rod Dimensions

Precision measurements help determine if connecting rods are within serviceable limits:

• Rod length (center-to-center distance)
• Big end bore diameter
• Small end bore diameter
• Rod bend and twist (using a straightedge and feeler gauges or specialized rod alignment tool)
• Rod bolt hole condition

9.4 Connecting Rod Reconditioning

During engine rebuilding, connecting rods often require reconditioning:

• Replacing bearing inserts
• Resizing the big end if it’s out of round or oversize
• Replacing rod bolts (always recommended)
• Balancing connecting rods to ensure equal weight
• Magnafluxing or other crack detection methods for high-performance applications

10. When to Replace Connecting Rods

Deciding when to replace connecting rods depends on several factors including the engine’s condition, intended use, and budget.

10.1 Signs That Replacement Is Necessary

Connecting rods typically require replacement when:

• They are bent or twisted beyond specifications
• Cracks are detected during inspection
• The big end is damaged or out of round beyond repair limits
• Upgrading to handle increased power in modified engines
• Reaching the end of their service life in high-performance applications

10.2 Upgrade Considerations

When modifying an engine for increased power, stock connecting rods may not be adequate. Consider upgrading to stronger aftermarket connecting rods when:

• Adding forced induction (turbocharger or supercharger)
• Significantly increasing compression ratio
• Planning to operate at higher than stock RPM limits
• Experiencing connecting rod failures in modified applications

10.3 Cost vs. Benefit Analysis

Replacing connecting rods typically requires complete engine disassembly, making it a significant expense. Consider:

• The overall condition of the engine
• Future performance plans
• The cost of replacement versus the value of the vehicle
• Whether less expensive repairs might address the current issues

11. Performance Connecting Rods

For enthusiasts seeking to increase engine power output, performance connecting rods offer increased strength and sometimes reduced weight compared to stock components.

11.1 Benefits of Performance Connecting Rods

Upgrading to performance connecting rods may provide:

• Increased strength to handle higher cylinder pressures
• Ability to safely operate at higher RPM limits
• Potential weight reduction for improved engine response
• Greater peace of mind when pushing engine limits
• Compatibility with high-performance bearing materials

11.2 Selecting Performance Connecting Rods

When choosing performance connecting rods, consider:

• The intended power level and use (street, strip, road racing, etc.)
• Required strength versus weight priorities
• Compatibility with other engine components
• Budget constraints
• Reputation of the manufacturer

11.3 Installation Considerations

Installing performance connecting rods requires:

• Precise measurement and fitting
• Proper torque procedures for rod bolts
• Correct bearing clearance measurements
• Professional balancing of the rotating assembly
• Break-in procedures specific to the components used

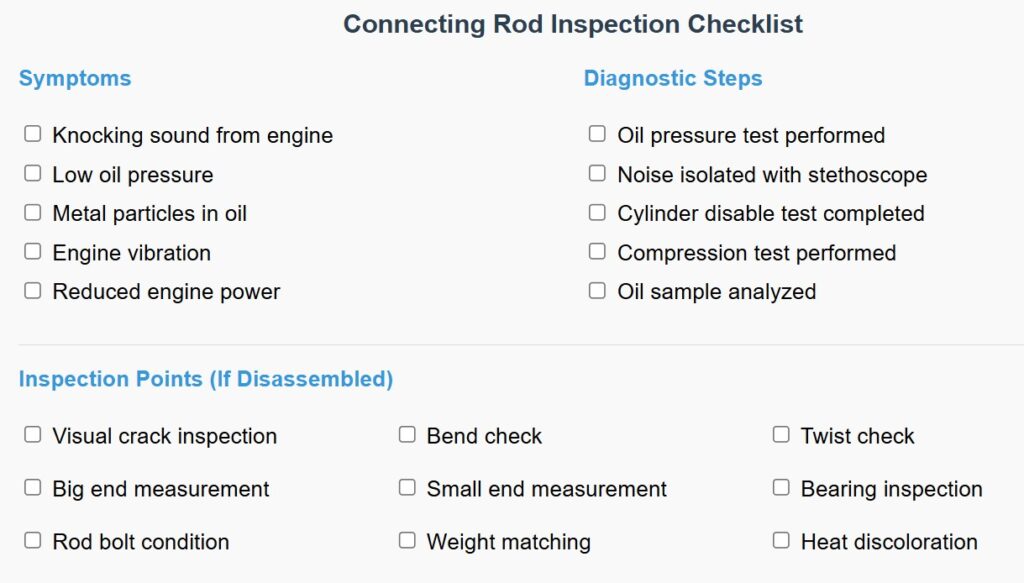

12. Connecting Rod Troubleshooting Checklist

Use this checklist when diagnosing potential connecting rod issues:

13. Frequently Asked Questions About Connecting Rods :

Q1: How long do connecting rods typically last?

Under normal driving conditions with proper maintenance, connecting rods typically last the life of the engine. Most connecting rod failures result from abuse, lack of lubrication, or manufacturing defects rather than normal wear. In high-performance applications, connecting rods may have a shorter service life due to increased stresses.

Q2: Can I drive with a bad connecting rod?

Driving with a damaged connecting rod is not recommended. A failing connecting rod can cause catastrophic engine failure, potentially leaving you stranded and resulting in much more expensive repairs. If you suspect connecting rod issues, have the vehicle inspected by a qualified technician as soon as possible.

Q3: What causes connecting rod failure?

Common causes of connecting rod failure include:

• Lack of lubrication or oil starvation
• Hydrolocking (liquid entering the combustion chamber)
• Over-revving the engine beyond its design limits
• Detonation or pre-ignition events
• Manufacturing defects
• Fatigue from repeated high-stress cycles
• Improper installation or torque during engine assembly

Q4: How much does it cost to replace connecting rods?

The cost to replace connecting rods varies widely depending on the vehicle, labor rates in your area, and whether you’re using OEM or aftermarket parts. Generally, expect the total cost (including labor) to range from $1,500 to $4,000 or more for most passenger vehicles. High-performance or luxury vehicles may cost significantly more.

Q5: Can I replace just one connecting rod?

While it’s technically possible to replace just one connecting rod, it’s generally not recommended. Connecting rods should be matched in weight to maintain engine balance. Additionally, if one rod has failed, others may be close to failure as well. Most professionals recommend replacing all connecting rods when one fails, especially in high-mileage engines.

Q6: What’s the difference between stock and performance connecting rods?

Performance connecting rods typically feature:

• Stronger materials (such as forged 4340 steel)
• Enhanced designs (often H-beam construction)
• Better quality control and testing
• Ability to handle higher cylinder pressures and RPM
• Often lighter weight
• Higher cost

Stock connecting rods are designed for the engine’s original power output and may not be adequate for significantly modified engines.

Q7: How are connecting rods balanced?

Connecting rods are balanced by removing material from specific areas to ensure all rods in an engine have the same weight. This is typically done at both the big end and small end separately. Proper balancing reduces engine vibrations and improves smoothness, especially at higher RPMs.

Q8: Can connecting rods be repaired?

Minor issues like bearing wear can be addressed by replacing the bearing inserts. However, bent, cracked, or otherwise damaged connecting rods generally cannot be reliably repaired and should be replaced. Some specialized machine shops may be able to recondition certain types of damage, but replacement is usually the safer option.

14. Conclusion

Connecting rods play a crucial role in your engine’s operation, converting the linear motion of pistons into the rotational force that powers your vehicle. Understanding their function, types, and potential problems helps you maintain your engine properly and recognize issues before they become serious.

While connecting rods are built to withstand tremendous forces, they can fail due to lack of maintenance, abuse, or manufacturing defects. By following proper maintenance schedules, using quality lubricants, and addressing unusual engine sounds promptly, you can help ensure your connecting rods last as long as possible.

If you’re considering performance modifications that increase engine power, evaluating your connecting rods’ capacity to handle the additional stress is essential. Upgrading to stronger connecting rods may be necessary to ensure reliability.

Remember that connecting rod issues often require professional diagnosis and repair. The information in this article provides general knowledge but should not replace the expertise of a qualified automotive technician when dealing with specific engine problems.
